    Electric 3 Phase Forklift Battery Chargers 48V 50A Overcurrent Protection

    Ask Lasest Price
    Brand Name : KOMCO
    Model Number : KO-DF48
    Payment Terms : Western Union, MoneyGram, T/T
    Delivery Time : 20-25 workday
    • Product Details
    • Company Profile

    Electric 3 Phase Forklift Battery Chargers 48V 50A Overcurrent Protection

    48V 50A Electric 3 phase forklift intelligent truck heavy duty battery traction battery auto charger

    Product Description:

    Forklift Battery Chargers are designed to be used with battery electric locomotives, lift trucks, and forklifts, and are capable of providing constant voltage, constant current, and constant power charging modes. They are available in a variety of input voltages, including 110V, 220V, 380V, 480V, and 550V. This product is built with LED or LCD indication for convenient monitoring, and come with a 1 year warranty. Additionally, these chargers are designed with air cooled or water cooled cooling methods.

    Features:

    The LC series intelligent charger is a charger controlled by a microprocessor. Its features are:

    1. The charging process realizes intelligent closed-loop control. During charging, it automatically detects and dynamically tracks the closed-loop control of the battery being charged, so that the battery is in the best charging electrochemical reaction state.

    2. Due to the battery being in a state of trace gas generation during the later stage of charging, the influence of overcharging and bubble flushing on the life of the battery plates is basically eliminated, which can extend the service life of the battery.

    3. The charger has multiple protection functions such as overcurrent, overload, short circuit, open circuit, reverse polarity, overcharge protection, etc., with strong protection functions and high reliability.

    4. Whole machine is composed of main functional modules such as microcomputer controller, controllable silicon rectifier module, transformer, display screen, etc.

    5. Charger starts automatically when powered on, and the matched charging curve program improves the process stability of charging.

    6. The structure is reasonable and easy to maintain. The information and status during charging are displayed in digits, which is intuitive and easy to operate.

    7. Charger is equipped with a manual equalization (constant current) charging function key, which is convenient for users to manually operate the maintenance of battery charging.

    8. Charging time is approximately 8-12 hours.


    Technical Parameters:


    NO.MODELSPEC.RATED INPUT POWERBATTERY CAPACITYWEIGHT

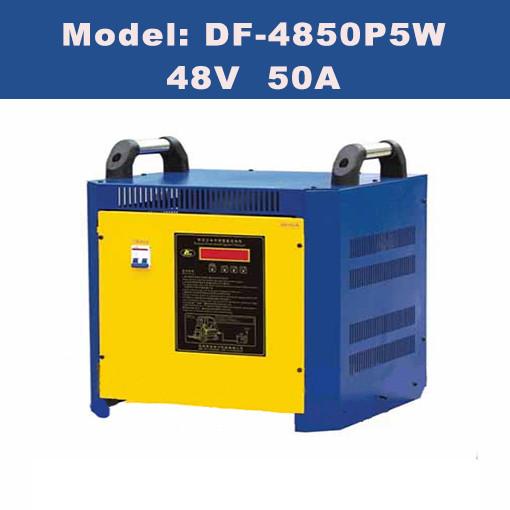

    1DF-4850P5W48V50A4.7KVA2P/380V/12.4A350Ah-440Ah57kg
    2DF-4850P8W48V50A3.9KVA3P/380V/6.0A350Ah-440Ah60kg
    3DF-4860P5W48V60A5.7KVA2P/380V/14.9A420Ah-480Ah61kg
    4DF-4860P8W48V60A4.7KVA3P/380V/7.1A420Ah-480Ah65kg
    5DF-4880P5W48V80A7.5KVA2P/380V/19.8A560Ah-630Ah69kg
    6DF-4880P8W48V80A6.2KVA3P/380V/9.5A560Ah-630Ah75kg
    7DF-8065P5W80V65A10.2KVA2P/380V/26.8A450Ah-550Ah75kg
    8DF-8065P8W80V65A8.4KVA3P/380V/12.8A450Ah-550Ah80kg
    9DF-8070P5W80V70A10.9KVA2P/380V/28.9A490Ah-600Ah80kg
    10DF-8070P8W80V70A9.1KVA3P/380V/13.8A490Ah-600Ah85kg
    Accept various customization.

    Applications:

    KOMCO KO-DF48 Forklift Battery Chargers are the perfect solution for industrial and commercial applications. It is designed to charge lift truck batteries and electric forklift batteries in a fast and efficient manner. This charger features a Constant Voltage, Constant Current, and Constant Power charging mode, and is available in a wide range of input frequencies (50/60Hz), input voltages (110V, 220V, 380V, 480V, 550V), and battery voltages (48V, 60V, 72V, 80V, 96V). It can be easily customized to meet the specific needs of any truck battery charger, lift truck charger, industrial charger, or electric forklift charger application. With its reliable performance and superior quality, KOMCO KO-DF48 Forklift Battery Chargers are the ideal choice for any industrial and commercial battery charging needs.

    Customization:

    Forklift Battery Chargers

    Brand Name: KOMCO, Model Number: KO-DF48, Place of Origin: China
    Type: Forklift Battery Chargers, Charging Time: 2-8 Hours, Cooling Method: Air Cooled, Water Cooled
    Input Voltage: 110V, 220V, 380V, 480V, 550V, Warranty: 1 Year

    Are you looking for a reliable forklift charger, truck battery charger, or electric locomotive charger? The KOMCO KO-DF48 is the perfect choice for you! It is a forklift battery charger made in China with 2-8 hours of charging time and air cooled and water cooled methods for cooling. It has an input voltage of 110V, 220V, 380V, 480V, and 550V, and we provide a warranty of 1 year.

    Support and Services:

    Forklift Battery Chargers Technical Support and Service

    We provide technical support and services for our Forklift Battery Chargers. Our team of experienced professionals has the expertise and knowledge necessary to handle any issue that may arise. Our goal is to ensure that our customers are able to get the most out of their Forklift Battery Chargers and that any issues are resolved quickly and effectively.

    We offer a variety of support options, including:

    • Phone support
    • Email support
    • Live chat support
    • On-site support

    Our team of experts is available to answer any questions you may have about your Forklift Battery Chargers. We also provide troubleshooting assistance and support for any issues you may be having. If necessary, we can provide on-site service to repair or replace any faulty components.

    Packing and Shipping:

    Packaging and Shipping

    Forklift Battery Chargers are packaged and shipped in one or more cardboard boxes. The boxes are labeled with the product name, model, voltage, and serial number. The boxes are secured with bubble wrap and tape to protect them from damage during shipping.

    The product is shipped via a courier service such as UPS, FedEx, or DHL. The shipment is tracked and insured for the full value of the product. The customer is provided with a tracking number and estimated delivery date.

    FAQ:

    Q&A about KOMCO KO-DF48 Forklift Battery Chargers

    Q1: What is the brand and model of this product?

    A1: This product is KOMCO KO-DF48 Forklift Battery Chargers.

    Q2: Where is this product from?

    A2: This product is from China.

    Q3: What is the voltage of this product?

    A3: The voltage of this product is 48V.

    Q4: What is the power of this product?

    A4: The power of this product is 500W.

    Q5: How long is the charging time?

    A5: The charging time is around 8-10 hours.
