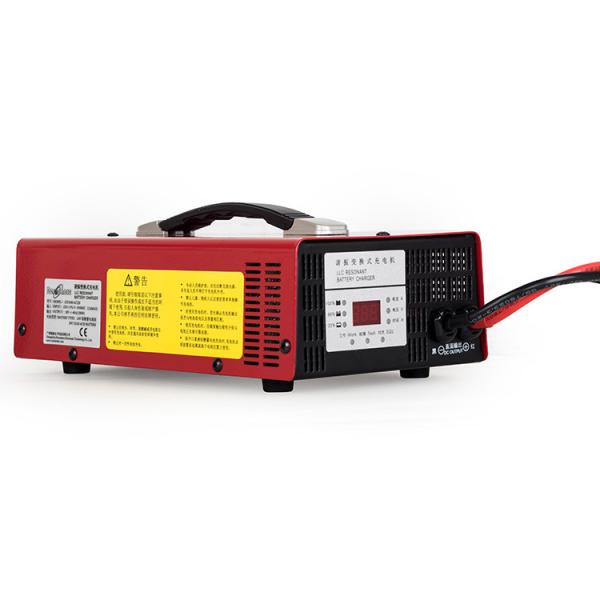

Waterproof High Power Constant Electric Vehicle 3.6K watt Lead
Acid/LiPo/LiFePO4 Lithium Battery Charger with Display
Product Description:
Forklift Battery Chargers are industrial chargers designed to
effectively charge lift truck batteries. They are capable of
withstanding high power and current demands, enabling fast and safe
charging of forklift batteries. The chargers feature a wide input
frequency range of 50/60Hz, and come with multiple voltage options
of 12V, 24V, 36V, 48V, and 60V. They also feature a variety of
charging modes, such as trickle charge, constant current charging,
constant voltage charging, and charging IU/WU Ia. The Forklift
Battery Chargers are available in both 110V and 220V input voltage.
With their high-performance and reliable design, the Forklift
Battery Chargers are ideal for powering lift truck batteries in
various industrial applications.
Features:
- Product Name: Waterproof High Power Constant Electric Vehicle 3.6K watt Lead
Acid/LiPo/LiFePO4 Lithium Battery Charger with Display
- Cooling Method: Air Cooled, Water Cooled
- Voltage: 12V/ 24V/ 36V/ 48V/ 60V
- Size: 29x16.5x8cm
- Input Frequency: 50/60Hz
- Charging Time: 2-8 Hours
- Forklift charger
- Lift truck charger
- Forklift battery charger
Technical Parameters:
| Parameters | Value |
|---|
| Size | 29x16.5x8cm |
| Input Voltage | 110V, 220V |
| Input Frequency | 50/60Hz |
| LED Lights | Work Instructions, Stimulated Fault Indication, BC Indicates, The
Battery Capacity Indication Scene |
| Charging Time | 2-8 Hours |
| Charging Mode | Trickle Charge, Xuan Current Charging (Multi], Constant Voltage
Charging, Charging IUIa/WUIa |
| Protection | Overvoltage, Overcurrent, Short Circuit, Reverse Polarity |
| Weight | 4.2KG |
| Voltage | 12V/ 24V/ 36V/ 48V/ 60V |
| Amperage | 15A,20A,25A,30A |
| Technical parameters Charger |
| Model | KO-XZJCF |
| Enter | |
| AC input | 220Vac±15% |
| AC input frequency | 47Hz‐63Hz |
| AC input current (Max.) | 16A@187Vac |
| Export | |
| Maximum output voltage. | open type:81Vdc Closed type:88.9Vdc |
| Maximum output current | 12V 30A,24V 15A,24V 20A,24V 30A,48V 15A,48V 20A,48V 25A,60V 15A |
| Maximum output power | 1728W(86.4V‐20A) |
| Maximum audible noise | 60db |
| Check steady precision | ±1% |
| Steady flow accuracy | ±1% |
| More than a ripple factor | 1% |
| Effectiveness | ≥93% |
| Features | |
| Intelligent charging | Trickle Charge, Xuan current charging (Multi], constant voltage
charging, Charging IUIa/WUIa |
| Equalizing charge | Charger online timer 10 hours after fully charging function after
starting balance (2 hours) |
| LED Lights | Work instructions, Stimulated fault indication, BC indicates, the
battery capacity indication scene |
| Automatic temperature compensation | ±5mV/C , Monomer (25C base point) |
| protection | |
Input over voltage protection voltage value | >253Vac |
Input under voltage protection voltage value | <187Vac |
Output over voltage protection Yoo | 98±1Vdc |
| Output over‐current flows Yoo | 110%* Also large charging current setting value |
Battery abnormal | When the battery voltage Gerbera access battery system power 90Vdc
or less than 60Vdc |
| Abnormal pressure, charger newspaper superfluous, digital display,
"BAT" battery pack when the access system power |
| Nymphides newspaper automatic discharge, charger bismuth restore
normal working condition |
Output short circuit protection | When Chu output short circuit, the charging machine and reported to
authorities broom "BAT": short releasing day after break up the
correct battery |
| Newspaper released, the output automatically return to normal state |
Output dis-connection protection | When gas output after disconnection, filling machines village
authorities and report pouts "BAT" to lift and break into the
correct battery |
| Newspaper released, output is automatically restored to normal
status Ji |
| Prevention and access protection | When the charger output correct and negative polarity, the charging
unit and report to authorities backbone "BAT" difficult to
pronounce report released, to return to normal
|
Applications:
KOMCO KO-XZ Forklift Battery Chargers are the perfect solution for
powering and charging batteries of battery electric locomotives,
trucks, lifts, and forklifts. The charger features an equalizing
charge with a charger online timer of 10 hours after fully charging
and a balance function after starting. It is equipped with LED
lights to provide work instructions, stimulate fault indication,
indicates BC, and the battery capacity indication scene. It offers
a wide range of input voltage from 110V to 220V and charging modes
including trickle charge, xuan current charging (multi], constant
voltage charging, and charging IUIa/WUIa. The product is backed by
a 1-year warranty to ensure long-term use and maximum satisfaction.
Customization:
Forklift Battery Chargers - KOMCO KO-XZ
KOMCO KO-XZ Forklift Battery Chargers are designed for use in
electric locomotive and lift truck charging applications. It
features voltage of 12V/ 24V/ 36V/ 48V/ 60V, input voltage of 110V,
220V, LED lights with work instructions, stimulated fault
indication, BC indicates and the battery capacity indication scene,
as well as protection of overvoltage, overcurrent, short circuit
and reverse polarity. The charger also has an equalizing charge
online timer of 10 hours after fully charging, and a function of
starting balance after 2 hours.
Support and Services:
Forklift Battery Chargers provides technical support and services
for customers who have purchased the product. Customers can contact
our customer service team for help with installation, operation,
troubleshooting and maintenance of the product. We also provide
free online tutorials and videos to help customers learn how to use
the product. We also provide product warranty services and will
repair or replace any faulty parts. If you have any questions or
concerns, please do not hesitate to contact us.
Packing and Shipping:
Packaging and Shipping
Forklift Battery Chargers are carefully packaged in durable boxes
to protect them during shipping. The boxes are secured with foam
inserts to ensure the chargers remain in place during transport.
The boxes are labeled with information about the product, including
its model, weight, dimensions, and other relevant details. The
chargers are shipped via ground and air freight, depending on the
customer's needs.
FAQ:
- Q: What is the brand name of this Forklift Battery Chargers?
A: The brand name of this Forklift Battery Chargers is KOMCO. - Q: What is the model number of this Forklift Battery Chargers?
A: The model number of this Forklift Battery Chargers is KO-XZ. - Q: Where is this Forklift Battery Chargers made?
A: This Forklift Battery Chargers is made in China. - Q: What type of battery does this Forklift Battery Chargers support?
A: This Forklift Battery Chargers supports 12V, 24V, 36V, 48V, 60V,
72V and 80V lead acid batteries. - Q: What is the working temperature range of this Forklift Battery
Chargers?
A: This Forklift Battery Chargers can work in a temperature range of
-15°C to 40°C.
