15A 30A 80A 100A 36 Volt Forklift Battery Chargers With LCD Display

Huizhou Qiangfeng Power Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 15A 30A 80A 100A 36 Volt Forklift Battery Chargers With LCD Display from wholesalers

    Buy cheap 15A 30A 80A 100A 36 Volt Forklift Battery Chargers With LCD Display from wholesalers
    • Buy cheap 15A 30A 80A 100A 36 Volt Forklift Battery Chargers With LCD Display from wholesalers
    • Buy cheap 15A 30A 80A 100A 36 Volt Forklift Battery Chargers With LCD Display from wholesalers

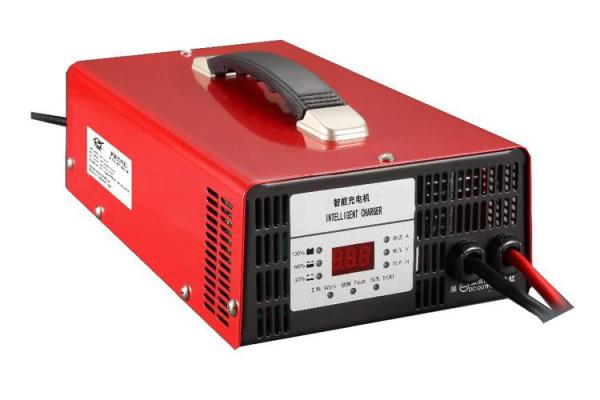

    15A 30A 80A 100A 36 Volt Forklift Battery Chargers With LCD Display

    Ask Lasest Price
    Brand Name : KOMCO
    Model Number : KO-XZ
    Payment Terms : T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    15A 30A 80A 100A 36 Volt Forklift Battery Chargers With LCD Display

    15A 30A 80A 100A Xuan Current Charging Battery Electric Locomotive Charger With LCD Display Automatic battery charger

    Product Description:

    This charger utilizes an innovative multi-resonant converter (LLC) with a nonlinear controller, revolutionizing the charging and power conversion for electric vehicles. It has successfully developed a comprehensive range of chargers and devices for various electric vehicles such as forklifts, golf carts, patrol cars, sightseeing vehicles, boats, cars, and hybrids. By effectively resolving reliability and lifespan concerns in high-power switch-mode power supplies, it significantly boosts the conversion efficiency of high-power converters, achieving a remarkable maximum efficiency of 97%.

    Features:

    • Product Name: 15A 30A 80A 100A Xuan Current Charging Battery Electric Locomotive Charger With LCD Display Automatic battery charger
    • LED Lights: Work Instructions, Stimulated Fault Indication, BC Indicates, The Battery Capacity Indication Scene
    • Warranty: 1 Year
    • Charging Time: 2-8 Hours
    • Input Voltage: 110V, 220V
    • Cooling Method: Air Cooled, Water Cooled
    • Specialty: Mine charger, truck battery charger

    Technical Parameters:

    PropertyDescription
    Warranty1 Year
    Amperage15A, 20A, 25A, 30A
    Input Voltage110V, 220V
    Charging ModeTrickle Charge, Xuan Current Charging (Multi], Constant Voltage Charging, Charging IUla/WUla
    Weight4.2KG
    Voltage12V/ 24V/ 36V/ 48V/ 60V
    ProtectionOvervoltage, Overcurrent, Short Circuit, Reverse Polarity
    Size29x16.5x8cm
    Cooling MethodAir Cooled, Water Cooled
    TypeForklift Battery Chargers

    15A Electric Locomotive Trickle Charge Charger 24V15A forklift charger battery-powered stacker intelligent charger 0


    Technical parameters Charger
    ModelKO-XZJCF
    Enter
    AC input220Vac±15%
    AC input frequency47Hz‐63Hz
    AC input current (Max.)16A@187Vac
    Export
    Maximum output voltage.open type:81Vdc Closed type:88.9Vdc
    Maximum output current12V 30A,24V 15A,24V 20A,24V 30A,48V 15A,48V 20A,48V 25A,60V 15A
    Maximum output power1728W(86.4V‐20A)
    Maximum audible noise60db
    Check steady precision±1%
    Steady flow accuracy±1%
    More than a ripple factor1%
    Effectiveness≥93%
    Features
    Intelligent chargingTrickle Charge, Xuan current charging (Multi], constant voltage charging, Charging IUIa/WUIa
    Equalizing chargeCharger online timer 10 hours after fully charging function after starting balance (2 hours)
    LED LightsWork instructions, Stimulated fault indication, BC indicates, the battery capacity indication scene
    Automatic temperature compensation±5mV/C , Monomer (25C base point)

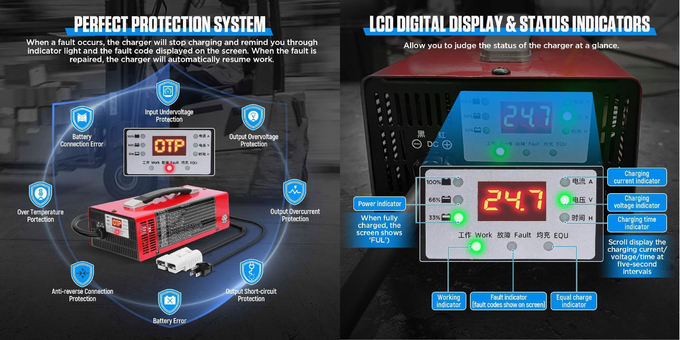

    protection

    Input over voltage

    protection voltage value

    >253Vac

    Input under voltage

    protection voltage value

    <187Vac

    Output over voltage

    protection Yoo

    98±1Vdc
    Output over‐current flows Yoo110%* Also large charging current setting value

    Battery abnormal

    When the battery voltage Gerbera access battery system power 90Vdc or less than 60Vdc
    Abnormal pressure, charger newspaper superfluous, digital display, "BAT" battery pack when the access system power
    Nymphides newspaper automatic discharge, charger bismuth restore normal working condition

    Output short circuit protection

    When Chu output short circuit, the charging machine and reported to authorities broom "BAT": short releasing day after break up the correct

    battery

    Newspaper released, the output automatically return to normal state

    Output dis-connection protection

    When gas output after disconnection, filling machines village authorities and report pouts "BAT" to lift and break into the correct battery
    Newspaper released, output is automatically restored to normal status Ji
    Prevention and access protectionWhen the charger output correct and negative polarity, the charging unit and report to authorities backbone "BAT" difficult to pronounce report released, to return to normal

    Applications:

    KOMCO's KO-XZ Forklift Battery Charger is a reliable and efficient mine charger and lift truck charger from China. It has a wide input frequency range of 50/60Hz and is equipped with advanced protection features such as overvoltage, overcurrent, short circuit, and reverse polarity. This charger provides efficient and safe charging of forklift batteries with multiple charging modes, including Trickle Charge, Xuan Current Charging (Multi], Constant Voltage Charging, and Charging IUIa/WUIa. It is designed for a quick and convenient charging time of 2-8 hours. KOMCO's KO-XZ Forklift Battery Charger is the perfect solution for those in need of a dependable and durable mine charger or lift truck charger.

    Customization:

    KOMCO Electric Locomotive Charger, Truck Battery Charger, Lift Truck Charger
    Brand Name: KOMCO
    Model Number: KO-XZ
    Place of Origin: China
    Equalizing charge: Charger Online Timer 10 Hours After Fully Charging Function After Starting Balance (2 Hours)
    Protection: Overvoltage, Overcurrent, Short Circuit, Reverse Polarity
    Charging Mode: Trickle Charge, Xuan Current Charging (Multi], Constant Voltage Charging, Charging IUIa/WUIa
    Size: 29x16.5x8cm
    Warranty: 1 Year

    Support and Services:

    At Forklift Battery Chargers, customer service and technical support are our top priority. Our knowledgeable staff is available to answer any questions you may have about our products, services, and installation. We offer comprehensive technical support, including troubleshooting, repairs, and maintenance. Our team of experts can help you with everything from battery selection to installation to ongoing maintenance. We also provide free online resources, such as instructional videos, product manuals, and customer support forums. Our goal is to provide you with the best experience possible, so please reach out to us with any questions or concerns.

    Packing and Shipping:

    Packaging and Shipping

    Forklift Battery Chargers are packaged in sturdy boxes with protective styrofoam inserts and securely sealed with tape. To ensure safe delivery, packages must be handled with care.

    Shipping costs vary depending on the size and weight of the package. All shipping is done via ground service and typically takes 1-7 business days, depending on the destination.

    FAQ:

    Q&A about KOMCO KO-XZ Forklift Battery Chargers
    • Q: What is the Brand Name of KOMCO KO-XZ Forklift Battery Chargers?
      A: The Brand Name is KOMCO.
    • Q: What is the Model Number of KOMCO KO-XZ Forklift Battery Chargers?
      A: The Model Number is KO-XZ.
    • Q: Where is KOMCO KO-XZ Forklift Battery Chargers made?
      A: KOMCO KO-XZ Forklift Battery Chargers are made in China.
    • Q: What features does KOMCO KO-XZ Forklift Battery Chargers have?
      A: KOMCO KO-XZ Forklift Battery Chargers have fast charging speed, high safety, and long service life.
    • Q: How do I install KOMCO KO-XZ Forklift Battery Chargers?
      A: Please follow the instructions in the user manual for installation.
