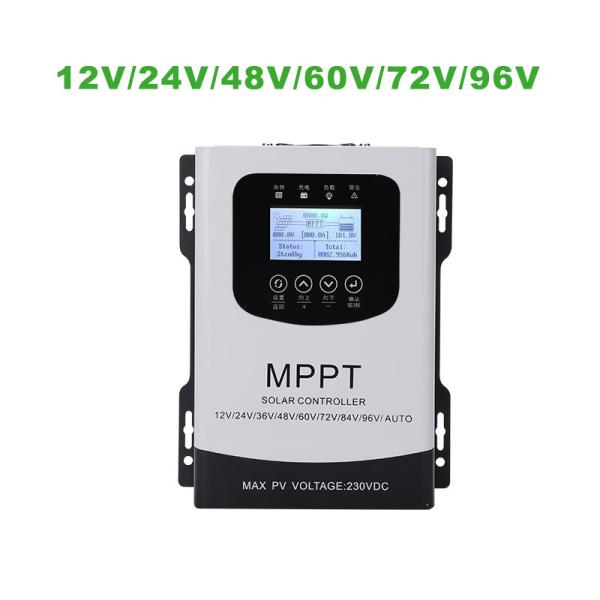

150VDC MPPT Solar Charge Controller for All Type Battery Adaptive
24V 48V 60V 72V 96V
Product Description:
The MPPT Solar Charge Controller is designed to provide a reliable
and efficient charging solution for solar systems. It is equipped
with a highly advanced Maximum Power Point Tracking (MPPT) system
to ensure maximum energy harvesting from the PV array. It also
features adjustable load undervoltage protection of 10.6V*N, where
N stands for the number of batteries, and a comprehensive
protection system against over voltage, under voltage, over
temperature, short circuit, reverse polarity, and overload. With a
working temperature range from -35℃ to +60℃ and a built-in LCD
display, the MPPT Solar Charge Controller is perfect for any solar
system.
Features:
- Product Name: MPPT Solar Charge Controller
- Max. Charge Current: 40A/60A/80A/100A
- Battery Type: All Type Battery Adaptive
- Working Temperature: -35℃~+60℃
- MPPT Tracking Efficiency: ≧99.5%
- System Voltage: 12V/ 24V/ 36V/ 48V/ 72V/ 96V (Adaptive)
Technical Parameters:
| Parameter | Value |
|---|
| Battery Type | All Type Battery Adaptive |
| System voltage | 12V/ 24V/ 36V/ 48V/ 72V/ 96V(Adaptive) |
| Working Temperature | -35℃~+60℃ |
| Protection | Over Voltage/Under Voltage/Over Temperature/Short Circuit/Reverse
Polarity/Overload |
| Display | LCD |
| Max. Charge Current | 40A/60A/80A/100A |
| Load undervoltage protection | 10.6V*N (N Stands For Batteryies Number) Parameters Can Be
Adjustable |
| PV input max. (VOC) | 150VDC |
| Warranty | 1-2 Years |

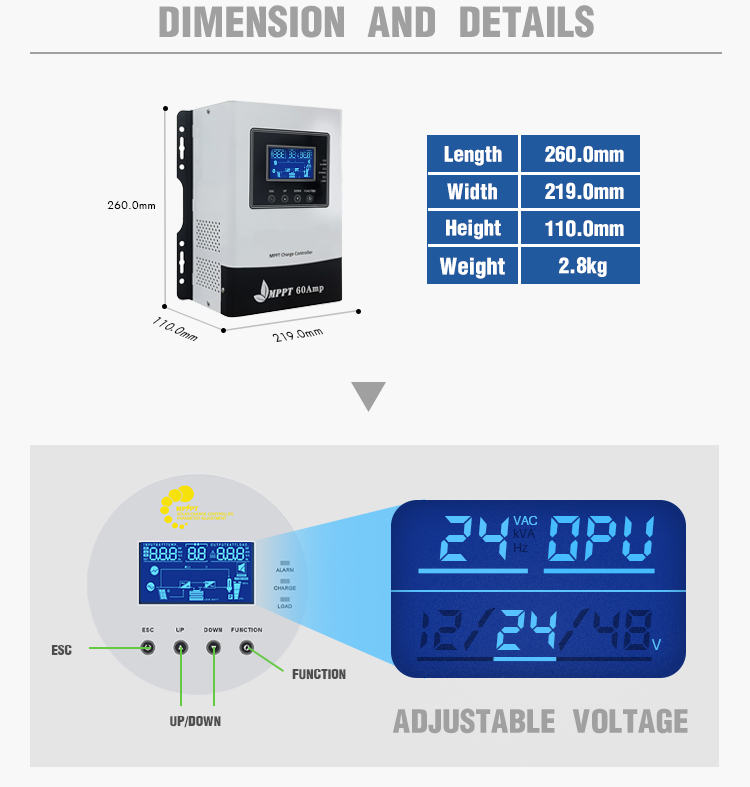

| Demension | 219*260*110mm |
Applications:
KOMCO's MPPT Solar Charge Controller, model KO-MB, has been
designed and manufactured in China, and is certified by CE and CCC.
With a Minimum Order Quantity of 5 and Delivery Time of 25 DAYS,
the MPPT Solar Charge Controller is available for purchase with
supported payment methods such as T/T, Western Union, and
MoneyGram. This Solar Charge Controller is capable of a MPPT
Tracking efficiency of 99.5%, a Maximum current of 40A, 60A, 80A,
and 100A, and supports All Type Battery Adaptive. With a Demension
of 219*260*110mm and Load undervoltage protection of 10.6V*N (N
Stands For Batteryies Number), Parameters Can Be Adjustable to
ensure the optimal performance of the device.
Customization:
KOMCO MPPT Solar Charge Controller
Brand Name: KOMCO
Model Number: KO-MB
Product Features
- Place of Origin: China
- Certification: CE,CCC
- Minimum Order Quantity: 5
- Delivery Time: 25 DAYS
- Payment Terms: T/T, Western Union, MoneyGram
- Working Temperature: -35℃~+60℃
- Warranty: 1-2 Years
- Maximum current: 40A,60A,80A,100A
- Display: LCD
- PV input max. (VOC): 150VDC
Product Description
KOMCO's Maximum Power Point Tracking Solar Charge Controller, also
known as Maximum Power Point Solar Charge Controller, is designed
to offer superior performance and maximum efficiency with its
advanced MPPT charging technology. This product is certified with
CE and CCC standards and ensures high-efficiency operation in a
wide range of temperature from -35℃ to +60℃. With its LCD display
and 150VDC PV input max., this product is suitable for a wide range
of applications. It is available in 4 different maximum current
models of 40A, 60A, 80A and 100A.
Support and Services:
MPPT Solar Charge Controller Technical Support and Service
We are committed to providing the highest level of technical
support and service for our MPPT Solar Charge Controller products.
Our team of highly qualified engineers, technicians and customer
service representatives are here to ensure your satisfaction.
Technical Support
We provide technical support for all our products, including our
MPPT Solar Charge Controller. Our team is knowledgeable and
experienced, and can help with product installation,
troubleshooting, and other technical issues.
Service
We offer a variety of services to ensure your MPPT Solar Charge
Controller is operating at peak performance. Our services include
periodic maintenance, repairs, upgrades, and software updates.
Customer Service
Our customer service representatives are available to answer any
questions you may have about our products. We also offer a
satisfaction guarantee on all our products, so you can be sure
you're getting the best quality product.
Packing and Shipping:
Packaging and Shipping of MPPT Solar Charge Controller:
MPPT Solar Charge Controller will be packaged in a carton box with
foam padding inside for extra protection.
The package will be shipped via UPS, FedEx, or DHL with tracking
number. Customers can track the package anytime to check the
delivery status.
FAQ:
Q1: What is the product brand and model?
A1: The product brand is KOMCO and the model number is KO-MB.
Q2: Where is the product made?
A2: The product is made in China.
Q3: What certifications does the product have?
A3: The product has CE and CCC certifications.
Q4: What is the minimum order quantity?
A4: The minimum order quantity is 5.
Q5: How long does it take to deliver the product?
A5: It takes 25 days to deliver the product.
